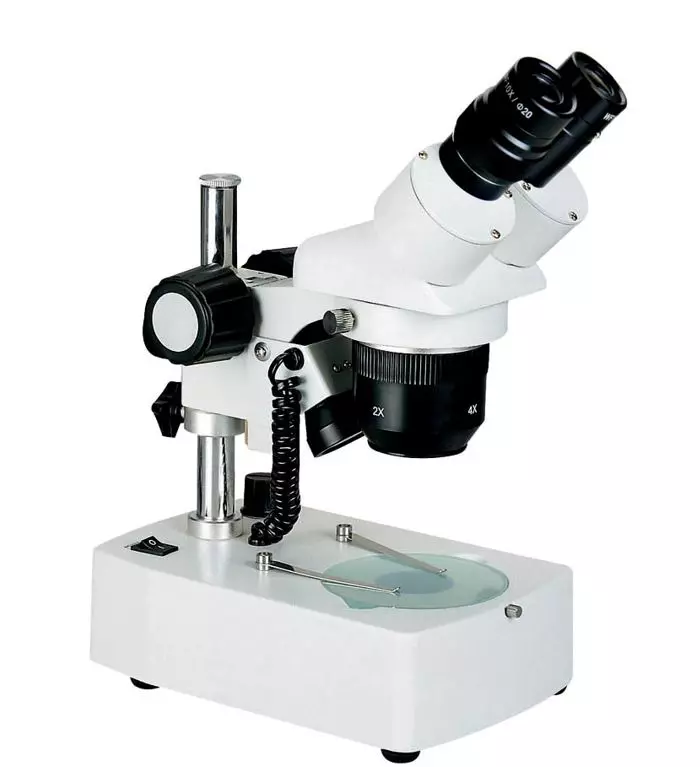

SHEARSCOPIC LUPA 'ZTX-20 LED'

Reference number : 5313090

Three-dimensional image resolution, without side inversion, with excellent contrast and color fidelity.

Rechargeable battery 3x1800Ah and external charger

Binocular head inclined at 45° with interpupillary distance adjustable between 55 and 75mm.

360° head rotation for easy access to bulky objects. Diopter adjustment on the left eyepiece holder of ±5 dp.

Eyepiece fixation using a security screw.

Eyepieces with rubber binoculars.

Pair of wide-field eyepieces WF 10x (20 Ø) in the XTX-3C LED model.

Pair of wide-field eyepieces WF 20x (10 Ø) in the ZTX-20 LED model. Objectives of 2x and 4x, housed in a double objective revolver with rotation in both directions and fixation on the axis.

Dual focus: Fast, through vertical sliding of the head via the column, and Fine, through bilateral macrometric adjustment by rack and pinion with tension regulation.

Solid base composed of a platform with an opaque circular stage of double contrast (white/black) and frosted translucent light diffuser, with fixation screw and specimen holding clips.

ZTX-20 LED model: Triple adjustable LED lighting system, with incident light in the head and transmitted light in the circular stage. Can be activated separately or both simultaneously, with adjustable intensity.
