Centrifugal pumps 'MP-20-R'
Reference number : 5900611

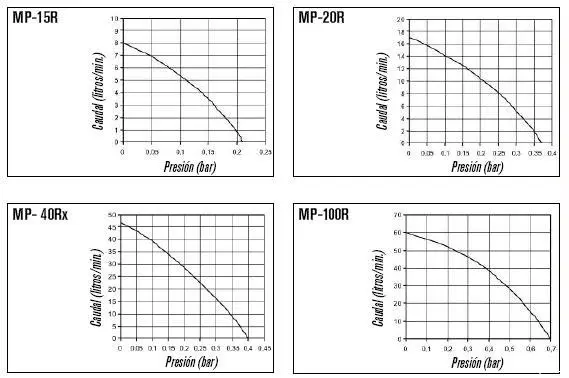

The centrifugal pump model MP-20R (reference 5900611) has a maximum flow rate of 17 liters per minute and a maximum pressure of 0.37 bar.It is designed for the circulation and discharge of liquids, with a suction and discharge connection of 18 mm in diameter.Its working temperature range is from 0 to 80°C, and like other models in the series, it is made with chemical-resistant materials such as fiberglass-reinforced polypropylene and EPDM.Its power consumption is 20 W, operating continuously.
Technical section
| Name | Value |
|---|---|
| Maximum pressure flow = 0 (l/min) | 17 |
| Maximum pressure at Q (flow) = 0 (bar) | 0,37 |
| Suction tube connection (mm) | 18 Ø |
| Output tube connection (mm) | 18 Ø |
| Normal working temperature (ºC) | 0 - 80 |
| Operating cycle | Continuo |
| Power consumption (W) | 20 |
| Pump line potato material | Polypropylene with fiberglass mixture |
| Pump line potato material | Polypropylene with fiberglass mixture |
| Motor turbine axis material | Aluminum oxide ceramic |
| Sealing Boards Material | EPDM |
| Voltage | 220-240 V / 50-60 Hz |
