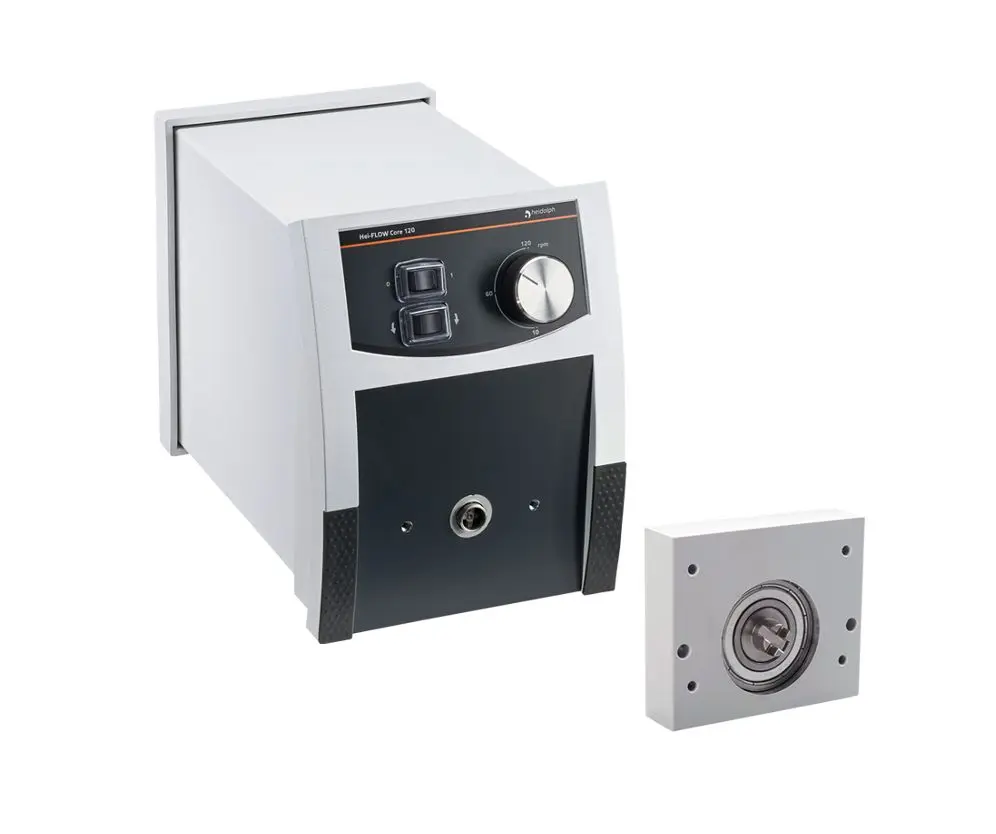

Hei-Flow core 120
Reference number : 5235001
This peristaltic pump is suitable for simple pumping of any medium. The pump transmission of this model allows switching between mono or multi-channel pump heads. It also allows changing the pumping direction to counterclockwise simply by pressing a button.
Technical section
| Name | Value |
|---|---|
| Flow with 'SP' MINX (ml/min) | 0,65-861 |
| Flow with 'mini-m-max' multicanal heads (ml/min) | 0,005-364 |
| Speed (R.P.M.) | 10-120 |
| Control precision | ± 2% |
| Selector and speed control | Scale and analog control |
| Rotation direction | reversible |
| Motor type (with electronic control) | condenser |
| Protección (DIN 40050) | IP-55 |
| Power/consumption (W) | 150/71 |
| Operation permit | 100% |
| Allowed ambient temperature (° C) | from 0 to 40ºC to 80% relative humidity |
| Weight without head (kg) | 6,8 |
| Tall x ancho x bottom (cm) | 22,5 x 16,6 x 25,6 |
