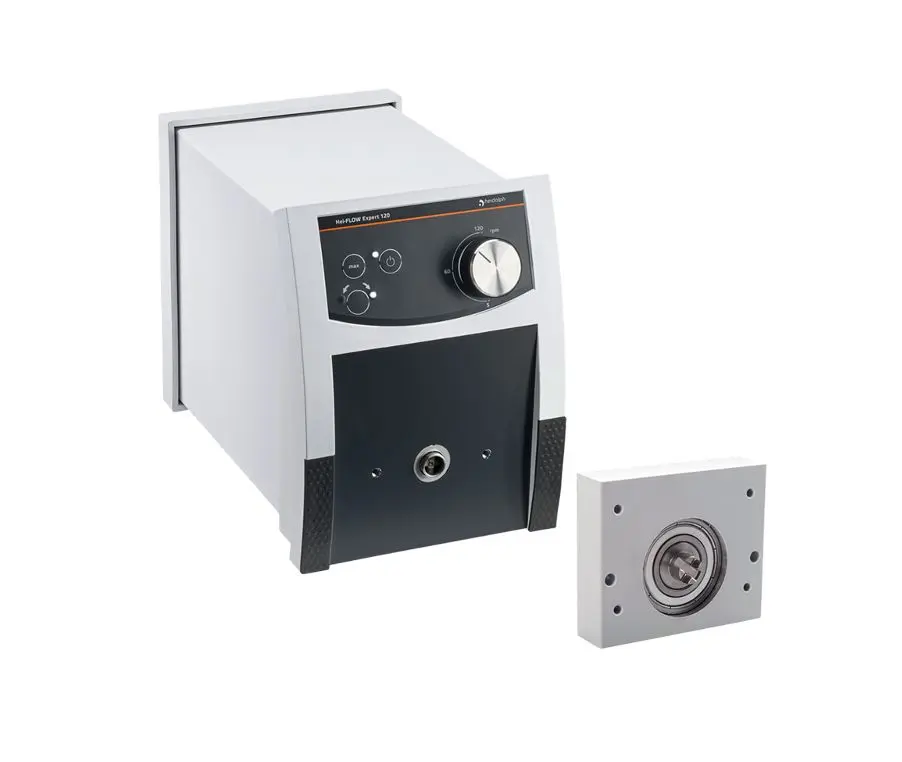

Hei-Flow expert 120
Reference number : 5235101
The pump transmission of the model 120 from the Hei-FLOW Expert series can operate with mono or multi-channel heads. The flow rates with single-channel pump heads are from 0.5 to 936 ml/min, and with multi-channel pump heads, from 0.005 to 277 ml/min.
Technical section
| Name | Value |
|---|---|
| Flow with 'SP' MINX (ml/min) | 0,36-813 |
| Flow with 'mini-m-max' multicanal heads (ml/min) | 0,005-39 |
| Speed (R.P.M.) | 5-120 |
| Control precision | ± 0,5% |
| Selector and speed control | On scale and digital control |
| Rotation direction | reversible |
| Analog interface (interface) | speed (0-10V) and direction of rotation and march/unemployment |
| PEDAL CONNECTION ON/OFF Switch | Yeah |
| Motor type (with electronic control) | continuous |
| Protección (DIN 40050) | IP-55 |
| Power/consumption (W) | 140/100 |
| Operation permit | 100% |
| Allowed ambient temperature (° C) | from 0 to 40ºC to 80% relative humidity |
| Weight without head (kg) | 8,2 |
| Tall x ancho x bottom (cm) | 22,5 x 16,6 x 25,6 |
